Google Workspace Flows: The Complete Guide to Agentic AI Automation Inside Gmail, Docs, Sheets & More

🤔 Curiosity: What If AI Could Automate Workflows Inside Your Existing Tools?

Most automation tools require you to learn new platforms, manage complex integrations, and deal with permission nightmares. But what if automation could happen inside the tools you already use every day—Gmail, Google Docs, Sheets, Drive, Calendar, and Chat?

Curiosity: Can AI truly understand context and make intelligent decisions within automated workflows? And what happens when automation moves from “if-this-then-that” to “AI reads, understands, and decides”?

Google Workspace Flows answers these questions by bringing agentic AI directly into Workspace applications. Instead of simple trigger-action chains, Flows uses Gemini AI to read documents, summarize emails, extract information, make classifications, and generate content—all within the native Workspace environment.

As someone who’s built automation systems for production environments, I’ve seen the gap between what automation promises and what it delivers. Most tools are great at moving data, but terrible at understanding context. Flows bridges that gap.

The question: Can this new approach to automation actually transform how we work, or is it just another tool to learn?

---

📚 Retrieve: Understanding Google Workspace Flows

What is Google Workspace Flows?

Google Workspace Flows is a no-code automation platform that integrates AI directly into Google Workspace applications. Unlike traditional automation that follows rigid rules, Flows uses agentic AI (powered by Gemini) to understand context, make decisions, and generate content as part of the automation process.

Key Differentiators:

1. Native Integration: Works entirely within Gmail, Docs, Sheets, Drive, Calendar, and Chat
2. AI-Powered: Uses Gemini AI to read, understand, and generate content
3. No External Tools: No need for third-party automation platforms
4. Context-Aware: AI understands the full context of documents, emails, and conversations

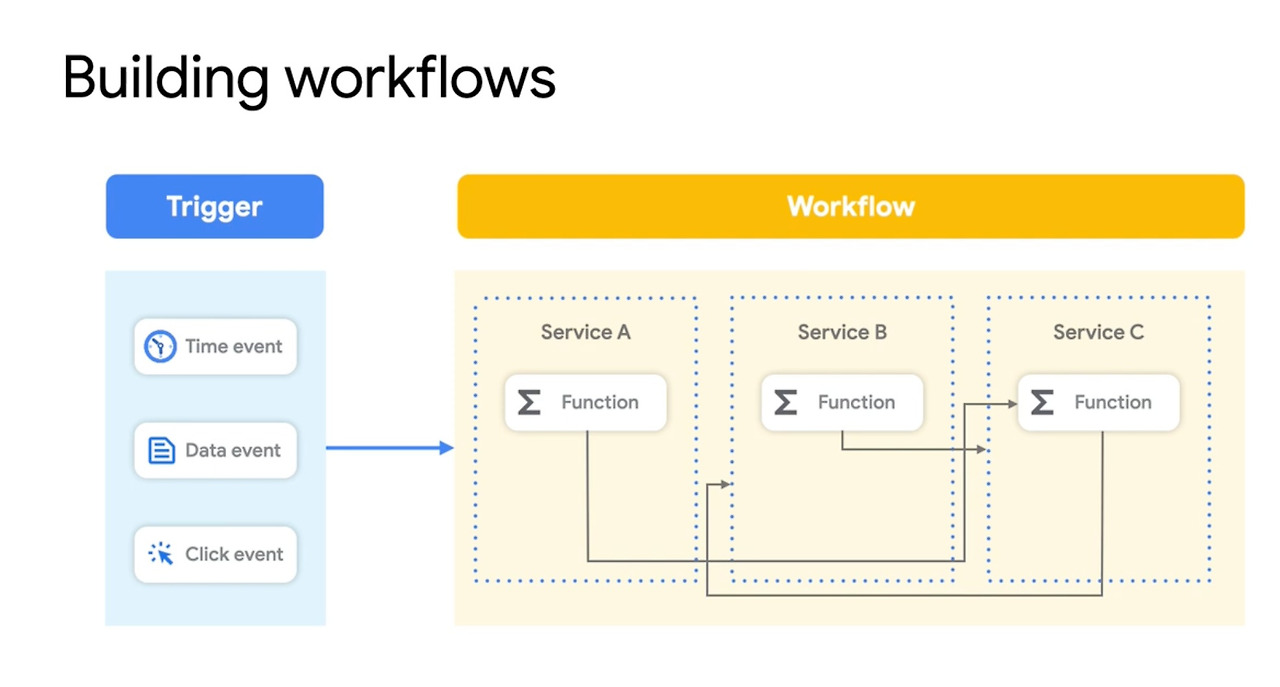

The Four Building Blocks of Flows

Flows are constructed from four core components:

graph TB
    subgraph Flow["Google Workspace Flow"]
        S[Starters<br/>Triggers] --> L[Logic<br/>Conditions & Branching]
        L --> A[Actions<br/>Workspace Operations]
        L --> AI[AI Steps<br/>Gemini Gems]
        AI --> A
        A --> E[End]
    end

    style S fill:#ff6b6b,stroke:#c92a2a,stroke-width:2px,color:#fff
    style AI fill:#4ecdc4,stroke:#0a9396,stroke-width:3px,color:#fff
    style A fill:#ffe66d,stroke:#f4a261,stroke-width:2px,color:#000

1. Starters (Triggers)

Starters define when a flow begins. They capture the initial event and provide context to the automation.

Common Starters:

• Gmail label applied
• New row added to Sheets
• File uploaded to Drive folder
• Reaction emoji added to Chat message
• Calendar event created
• Form submission received

Example:

Starter: When email receives label "Customer Support"
→ Provides: Email content, sender, subject, attachments

2. Logic (Conditional Branching)

Logic enables conditional flows based on:

• Date/time conditions
• File properties
• User roles
• AI-classified labels (this is where it gets interesting)

Traditional Logic:

IF email contains "urgent" THEN route to priority queue

AI-Enhanced Logic:

AI classifies email sentiment → IF sentiment is "negative" AND priority is "high"
THEN route to escalation queue

3. Actions (Workspace Operations)

Actions perform actual operations within Workspace:

Action Type	Examples
Email	Send email, add label, archive
Sheets	Update cells, add rows, create charts
Docs	Create document, update content
Drive	Move files, rename, organize
Chat	Send message, create space
Calendar	Create event, update meeting

Key Point: All actions are auditable and follow Workspace security policies.

4. AI Steps (Gems)

AI Steps are where Gemini AI performs intelligent operations:

graph LR
    A[Input] --> B[Gemini AI<br/>Gem]
    B --> C[Output]

    subgraph InputTypes["Input Types"]
        I1[Long Email Thread]
        I2[Document Content]
        I3[Spreadsheet Data]
        I4[Chat Messages]
    end

    subgraph AIOps["AI Operations"]
        O1[Summarize]
        O2[Extract Fields]
        O3[Classify]
        O4[Generate Draft]
        O5[Translate]
        O6[Create Content]
    end

    InputTypes --> B
    B --> AIOps

    style B fill:#4ecdc4,stroke:#0a9396,stroke-width:3px,color:#fff

AI Step Capabilities:

Capability	Use Case	Example
Summarize	Long email threads, documents	“Summarize this 50-email support thread in 3 bullet points”
Extract	Structured data from unstructured text	Extract customer name, issue type, priority from email
Classify	Categorize content	Classify email as “bug report”, “feature request”, or “question”
Generate	Create content	Generate email draft based on template and context
Translate	Language conversion	Translate customer inquiry to English
Create	Generate documents	Create meeting notes from calendar event and attendees

Controlling AI Output:

AI Steps can be controlled with:

• Purpose: What the AI should accomplish
• Tone: Professional, casual, technical
• Length: Word count or paragraph limits
• Format: JSON, structured text, bullet points
• Examples: Positive and negative examples for guidance

How Flows Differ from Traditional Automation

Traditional Automation (Zapier, Make, Apps Script):

graph LR
    A[Trigger] --> B[Simple Rule]
    B --> C[Action]
    C --> D[Next Action]

    style B fill:#ff6b6b,stroke:#c92a2a,stroke-width:2px,color:#fff

Problems:

• ❌ No understanding of content
• ❌ Rigid rules break easily
• ❌ Requires external tools
• ❌ Limited to structured data

Google Workspace Flows:

graph LR
    A[Trigger] --> B[AI Reads Context]
    B --> C[AI Makes Decision]
    C --> D[AI Generates Content]
    D --> E[Action]
    E --> F[AI Validates]

    style B fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff
    style C fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff
    style D fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff

Advantages:

• ✅ Understands unstructured content
• ✅ Adapts to variations
• ✅ Native to Workspace
• ✅ Works with emails, documents, conversations

---

💡 Innovation: Real-World Applications and Production Strategies

High-Impact Use Cases

1. Email Classification and Case Management

The Problem: Support teams receive hundreds of emails daily. Manually categorizing, prioritizing, and routing them is time-consuming and error-prone.

The Flow Solution:

sequenceDiagram
    participant Email
    participant Flow
    participant AI
    participant Sheets
    participant Chat

    Email->>Flow: New email with label "Support"
    Flow->>AI: Analyze email content
    AI->>AI: Extract: customer, issue type, priority
    AI->>AI: Classify: bug/feature/question
    AI->>Sheets: Create case record
    AI->>AI: Summarize email thread
    AI->>Chat: Send summary to support queue

Implementation Steps:

1. Starter: Gmail label “Customer Support” applied
2. AI Step 1: Extract customer name, email, issue description
3. AI Step 2: Classify issue type (bug, feature request, question)
4. AI Step 3: Determine priority (high, medium, low)
5. Action: Create row in Sheets with extracted data
6. AI Step 4: Summarize email thread (if part of conversation)
7. Action: Send summary to Chat space

Benefits:

• ⏱️ Time saved: 5-10 minutes per email → 30 seconds
• 📊 Accuracy: Consistent classification vs. human variation
• 🔄 Scalability: Handles volume spikes automatically

2. Approval and Review Workflows

The Problem: Document review processes involve multiple steps: draft creation, review requests, approval tracking, and final distribution. This creates bottlenecks and delays.

The Flow Solution:

graph TB
    A[Document Created] --> B[AI Generates Draft]
    B --> C[AI Extracts Key Points]
    C --> D[Send Review Request]
    D --> E{Approved?}
    E -->|Yes| F[Create Final Version]
    E -->|No| G[Send Revision Request]
    G --> B
    F --> H[Organize in Drive]
    H --> I[Notify Stakeholders]

    style B fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff
    style C fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff

Example: Expense Report Approval:

1. Starter: Expense report uploaded to Drive folder
2. AI Step: Extract amounts, categories, dates, receipts
3. Action: Create summary document
4. Action: Send approval request via Chat/Email
5. Logic: Wait for approval response
6. Action: If approved, move to “Approved” folder and notify finance
7. Action: If rejected, send revision request with AI-generated feedback

3. Sales Handoff Automation

The Problem: After sales meetings, critical information needs to be extracted, recorded in CRM, and shared with the customer success team. This manual process is slow and information gets lost.

The Flow Solution:

graph LR
    A[Meeting Notes<br/>in Docs] --> B[AI Extracts<br/>Key Info]
    B --> C[Update CRM/Sheets]
    B --> D[Generate<br/>Follow-up Doc]
    C --> E[Create Next<br/>Meeting]
    D --> F[Share with<br/>Customer]

    style B fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff
    style D fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff

Key AI Operations:

• Extract: Company name, decision makers, budget, timeline, pain points
• Generate: Follow-up email, proposal outline, next steps document
• Classify: Deal stage, priority level
• Create: Calendar event for next meeting

4. Employee Onboarding

The Problem: Onboarding new employees requires creating folders, documents, checklists, and sending multiple communications. This is repetitive but requires personalization.

The Flow Solution:

1. Starter: New employee added to “Onboarding” Sheet
2. Action: Create Drive folder structure
3. AI Step: Generate personalized welcome message based on role
4. Action: Create onboarding checklist document
5. AI Step: Generate role-specific training materials
6. Action: Send welcome email with links
7. Action: Create calendar events for orientation sessions

Benefits:

• 🎯 Consistency: Every employee gets the same quality onboarding
• ⚡ Speed: 45 minutes → 5 minutes of setup time
• 📝 Personalization: AI adapts content to role and department

5. Financial and Back-Office Automation

The Problem: Invoices arrive via email, need to be processed, recorded, and organized. Manual data entry is error-prone and time-consuming.

The Flow Solution:

1. Starter: Email with invoice attachment received
2. AI Step: Extract invoice number, amount, date, vendor, line items
3. Action: Record in Sheets
4. AI Step: Validate against expected format
5. Logic: If amount exceeds threshold, flag for review
6. Action: Rename file with standardized format:

   Invoice_Vendor_Date_Amount.pdf


7. Action: Move to organized Drive folder structure
8. Action: Notify accounting team if anomalies detected

Comparison with Other Automation Tools

Tool	Best For	Limitations	When to Use Flows Instead
Zapier/Make	Cross-platform SaaS integrations	Limited AI, external tool	Workspace-native processes with AI needs
Apps Script	Custom code, fine-grained control	Requires development skills	Non-developers need quick automation
AppSheet	Data-driven mobile apps	Not for workflow automation	Process automation within Workspace
Cloud Workflows	Backend API orchestration	Not user-facing	End-user workflow automation

Key Insight: Flows isn’t meant to replace these tools—it’s designed for Workspace-centric processes that benefit from AI understanding.

Building Your First Flow: Step-by-Step Guide

Step 1: Define Clear Outcomes

Bad: “Automate email processing”

Good: “When an email with label ‘Support’ arrives, extract customer name and issue type, classify priority, create a case in Sheets, and send a summary to the support Chat space.”

Step 2: Map Data Sources and Participants

Data Sources:

• Gmail labels
• Sheets ranges
• Drive folders
• Chat spaces
• Calendar events

Participants:

• Who needs to be notified?
• Who approves?
• Who reviews?

Step 3: Design AI Steps Carefully

AI Step Design Principles:

AI Step: Extract Customer Information
Purpose: Extract structured data from email
Input: Email body and subject
Output Format: JSON
Fields:
  - customer_name: string
  - email: string
  - issue_type: one of ["bug", "feature", "question"]
  - priority: one of ["high", "medium", "low"]
  - description: string (max 200 words)
Examples:
  Positive: "Customer John Doe (john@example.com) reports a bug with high priority: login fails"
  Negative: "Something is broken" (too vague)
Validation:
  - customer_name: required, non-empty
  - email: required, valid email format
  - issue_type: must be one of allowed values

Common Mistakes:

• ❌ Vague instructions: “Extract important information”
• ❌ No examples: AI doesn’t know what “good” looks like
• ❌ No validation: Bad data propagates through the flow
• ❌ Too complex: One AI step trying to do everything

Best Practices:

• ✅ Specific instructions with examples
• ✅ Clear output format (JSON preferred)
• ✅ Validation rules
• ✅ Break complex tasks into multiple AI steps

Step 4: Add Error Handling

graph TB
    A[AI Step] --> B{Valid Output?}
    B -->|Yes| C[Continue Flow]
    B -->|No| D[Log Error]
    D --> E[Send Alert]
    E --> F[Human Review]
    F --> G[Manual Correction]

    style B fill:#ff6b6b,stroke:#c92a2a,stroke-width:2px,color:#fff
    style F fill:#ffe66d,stroke:#f4a261,stroke-width:2px,color:#000

Error Handling Strategies:

1. Validation Layer: Check AI output before using it
2. Fallback Actions: If AI fails, route to human review
3. Retry Logic: For transient failures, retry with adjusted prompt
4. Monitoring: Track error rates and common failure patterns

Step 5: Test with Small Pilot

Pilot Testing Checklist:

• Test with 5-10 real examples
• Verify AI output quality
• Check permission issues
• Validate timezone handling
• Test edge cases (empty fields, special characters)
• Measure execution time

Step 6: Production Deployment

Pre-Production:

• Document flow purpose and steps
• Set up monitoring and alerts
• Define rollback procedure
• Train users on expected behavior

Production:

• Start with limited scope
• Monitor for first week
• Collect feedback
• Iterate based on results

AI Step Design: Advanced Techniques

1. Multi-Step AI Validation

graph LR
    A[AI Extract] --> B[AI Validate]
    B --> C{Valid?}
    C -->|Yes| D[Use Data]
    C -->|No| E[AI Correct]
    E --> B

    style B fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff
    style E fill:#4ecdc4,stroke:#0a9396,stroke-width:2px,color:#fff

Example:

1. AI Step 1: Extract invoice data
2. AI Step 2: Validate extracted data against known patterns
3. Logic: If validation fails, trigger correction
4. AI Step 3: Attempt to correct errors
5. Logic: If still invalid, route to human review

2. Template Standardization

Problem: Inconsistent document formats cause AI extraction to fail.

Solution: Maintain standardized templates in Drive:

Templates/
  ├── Invoice_Template.pdf
  ├── Expense_Report_Template.xlsx
  └── Meeting_Notes_Template.docx

Flow Enhancement:

1. AI identifies document type
2. Compare against template structure
3. Extract using template as guide
4. Flag deviations for review

3. Human-in-the-Loop for Critical Decisions

When to Include Human Review:

Decision Type	Risk Level	Automation Level
Email classification	Low	Full automation
Invoice processing	Medium	AI + validation
Customer response	High	AI draft + human review
Policy decisions	Critical	Human only

Implementation:

graph TB
    A[AI Generates Response] --> B{Risk Level?}
    B -->|Low| C[Send Automatically]
    B -->|High| D[Send for Review]
    D --> E[Human Approves]
    E --> C

    style D fill:#ffe66d,stroke:#f4a261,stroke-width:2px,color:#000

Governance and Operations

Security Considerations:

Flows inherit Workspace security:

• ✅ OAuth 2.0 authentication
• ✅ Workspace admin controls
• ✅ Audit logs
• ✅ Data residency compliance

Additional Governance:

1. Ownership: Assign flow owners responsible for maintenance
2. Permissions: Use least-privilege access
3. Change Management: Version control and approval process
4. Training: Educate users on flow capabilities and limitations
5. Risk Classification: Categorize flows by business impact

Monitoring Metrics:

Metric	Purpose	Target
Execution Time	Performance	< 30 seconds per flow
Success Rate	Reliability	> 95%
AI Accuracy	Quality	> 90% (domain-dependent)
Error Rate	Stability	< 5%
Time Saved	ROI	Measure vs. manual process

ROI Analysis

Calculating Value:

Time Saved per Instance = Manual Time - Automated Time
Instances per Month = Volume
Monthly Time Saved = Time Saved × Instances
Annual Value = Monthly Time Saved × 12 × Hourly Rate

Example:
- Manual email processing: 5 minutes
- Automated processing: 30 seconds
- Time saved: 4.5 minutes = 0.075 hours
- Volume: 200 emails/month
- Monthly savings: 0.075 × 200 = 15 hours
- Hourly rate: $50
- Annual value: 15 × 12 × $50 = $9,000

Additional Benefits:

• Consistency: Reduced human error
• Scalability: Handle volume spikes
• Quality: Standardized output
• Employee Satisfaction: Eliminate repetitive tasks

---

🎯 Key Takeaways

Insight	Implication	Action Item
Flows brings AI into Workspace natively	No external tools needed	Evaluate Workspace-native processes for automation
AI Steps require careful design	Quality depends on prompts	Invest time in AI step design with examples
Human review for high-risk decisions	Balance automation with control	Identify critical decision points
Start small, scale gradually	Reduces risk and builds confidence	Begin with low-risk, high-volume processes
Measure and iterate	Continuous improvement	Track metrics and refine flows

Why This Matters

Google Workspace Flows represents a fundamental shift in automation:

1. From Rules to Intelligence: AI understands context instead of following rigid rules
2. From External to Native: Automation happens where work already occurs
3. From Developers to Everyone: No-code with AI makes automation accessible
4. From Simple to Smart: Automation can handle complex, judgment-based tasks

The Challenge: Designing effective AI steps requires understanding both the business process and AI capabilities. But the payoff—intelligent automation that actually understands your work—is transformative.

---

🤔 New Questions This Raises

1. How do we ensure AI accuracy in critical business processes? What validation strategies work best?

2. What’s the right balance between automation and human oversight? When should AI decisions be reviewed?

3. How do we handle AI hallucinations or errors? What monitoring and correction mechanisms are needed?

4. Can Flows integrate with external systems? How do we bridge Workspace-native automation with enterprise systems?

5. What’s the learning curve for non-technical users? How do we make AI step design accessible?

Next experiment: Build a production flow for email classification, measure AI accuracy over 100 emails, and compare against manual classification to quantify the value.

---

References

Original Article:

• Google Workspace Flows 완벽 가이드: Gmail·Docs·Sheets 안에서 작동하는 진짜 AI 자동화의 시작 - Digital Bourgeois

Google Workspace Flows:

• Google Workspace Flows Official Documentation
• Google Workspace Flows: The Practical Guide - Engini.io
• Getting Started with Google Workspace Flows

Gemini AI:

• Google Gemini AI Overview
• Gemini API Documentation
• Gemini in Google Workspace

Agentic AI:

• What is Agentic AI? - Google Cloud
• Agentic AI Patterns
• Building Agentic AI Systems

Automation Best Practices:

• Workflow Automation Best Practices
• AI Prompt Engineering Guide
• Error Handling in Automation

Comparison Tools:

• Zapier vs Google Workspace Flows
• Apps Script vs Flows
• Make (Integromat) vs Flows

Use Case Examples:

• Email Automation with Flows
• Document Processing Automation
• Sales Process Automation

Security & Governance:

• Google Workspace Security
• Flows Security Best Practices
• Data Residency and Compliance

Community & Support:

• Google Workspace Community
• Flows User Forum
• Workspace Updates Blog

Training Resources:

• Google Workspace Learning Center
• Flows Tutorial Videos
• AI Prompt Engineering Course

Related Technologies:

• Google Apps Script
• Google Cloud Workflows
• AppSheet
• Google Workspace API
