AI
D-073 Makes Each Proposal's Commit Gate Traceable
A source audit of D-073’s trace mirror: it rebuilds each proposal’s checks from committed state and reports gate states only when the hash-bound writer agrees on refusal codes.
A commit-gate trace can look authoritative while still being only a second summary written beside the real decision. D-073 gives that risk a concrete answer: reconstruct the expected checks against the committed pre-state, let the canonical machine decide, and report the trace only when the mirror’s failure-code set agrees with the writer’s returned codes.
I inspected the pinned source, its Python drift test, and archived first-party dashboard captures. This is an implementation audit, not a claim that the trace is a native event log or a record of what a player understood.
Editorial method: This Source Audit was researched and drafted with AI assistance under a policy-bound evidence harness; no first-hand playtest or human participant result is claimed.
🤔 Curiosity: what does a “per-proposal trace” actually prove?
When a proposal is held, the useful question is not merely “which color appeared?” It is: which checks were evaluated, which one first refused the proposal, which checks were skipped after that refusal, and which gate families did not apply at all?
The D-073 dashboard adds a trace mirror for that narrow job. The important word is mirror. The hash-bound game machine does not store an evaluation trace. A separate EvaluationTrace reconstructs one from the scenario, the committed PRE-state, the operation, and its arguments. The dashboard treats that reconstruction as evidence only when it agrees with the machine’s own returned codes.
That gives the trace a useful boundary: it can explain a decision without becoming a second state writer. It also gives the implementation something testable. If the mirror drifts from the machine, the dashboard should not turn the mismatch into a green result.

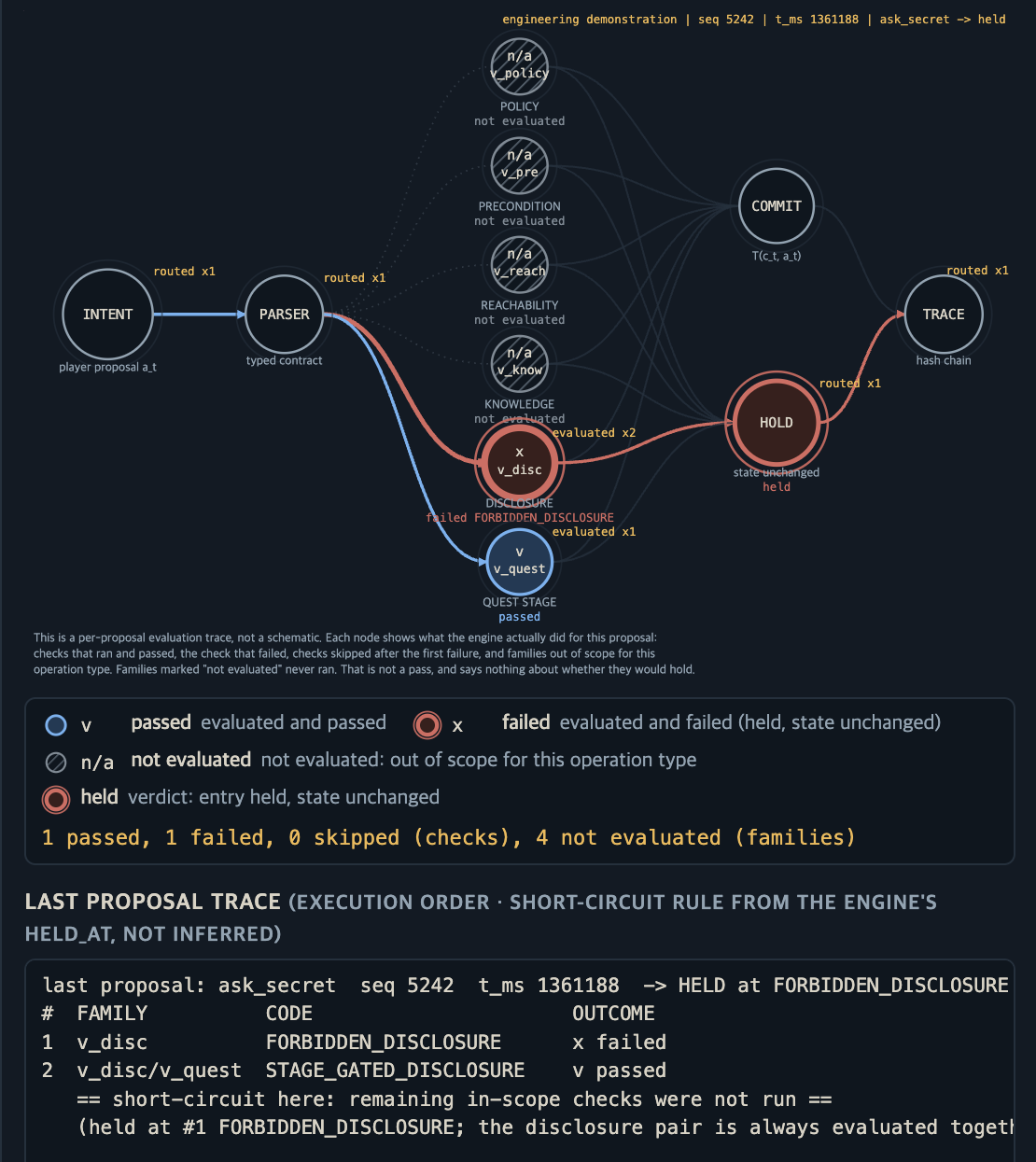

ask_secret held by the forbidden-disclosure gate while its stage-gate check passed. Source: https://sealed-lighthouse-trace-rpg.vercel.app/dashboard/. Publisher/creator: akillness / neural_symbolic_in_game project. First-party capture reproduced with project-owner permission for the akillness Git blog draft only; no third-party license is asserted. Retrieved into this run at 2026-10-01 18:15:15 KST without pixel edits.This first capture is the dialogue-choice route: D-073 calls the disclosure mirror and the machine’s disclosure validator directly for ask_secret. The table below covers the separate acquire_object, install_lens, and reveal_hint branches in EvaluationTrace.reconstruct(); the screenshot is not a fourth branch in that table.
📚 Retrieve: the mirror reconstructs; the machine remains the writer
At the D-073 commit, evaluation_trace.gd declares a SHA-256 pin for the exact sealed_lighthouse_machine.gd source. The retained engine evidence binds the same machine hash. The Python test checks that the mirror pin equals both the current machine bytes and the hash recorded in that evidence manifest. The mirror therefore has a version boundary: a machine-source change should force its plan to be re-audited instead of silently inheriting old authority.
The controller’s order matters. _propose() asks the mirror to reconstruct checks against machine.state, then calls machine.apply_operation(), then compares the mirror’s failures with the machine result. The machine alone decides acceptance and owns the canonical state change. The mirror reads the PRE-state; it does not add checks or write canonical state.
The three public proposal paths make the short-circuit contract concrete:
| Proposal | Reconstructed order | What a hold can leave behind |
|---|---|---|
acquire_object | Is the object absent? If present, is its location unreachable? | The second check is skipped when the object is absent. |
install_lens | Is the required object missing? If carried, is the quest stage too early? | The stage check is skipped when the required item is missing. |
reveal_hint | Check forbidden and stage-gated disclosure for the fact; if neither fails, check actor and then the actor’s knowledge. | Actor and knowledge checks are skipped after a disclosure hold. |
Those skips are not passes. For a consistent reconstruction, the dashboard separates four states: pass, fail, skipped, and out_of_scope. “Skipped” means an in-scope check was not reached after an earlier hold. “Out of scope” means that gate family was not consulted by this operation. That distinction is more informative than coloring every unvisited family green.
The agreement check is deliberately narrower than “the two implementations are identical.” failed_codes() removes duplicate failures and sorts the remaining codes. consistent() applies the same unique-and-sorted comparison to the machine’s returned code array. A match therefore means the two sides agree on the set of failure codes for this call. It does not prove that a runtime event stream recorded the same order or multiplicity.
The display order comes from the mirror’s check list and CHECK_PLAN. The drift test checks the pinned machine bytes, the retained evidence binding, the source-text order of selected refusal codes, and the controller’s wiring. It also asserts that the controller does not read machine.last_trace or a trace field from the machine result. The test reads source text and hashes; it does not launch Godot or execute a proposal against a running engine. That is valuable drift protection, but it is not a dynamic parity test across every state and branch.
There is another useful fail-closed detail. If the mirror’s failure-code set does not match the machine’s returned codes, dashboard_trace() returns empty checks and an empty family-state map with consistent: false. The code comment says the dashboard renders “state missing,” not a pass. In other words, disagreement removes the trace instead of giving an unverified reconstruction the visual authority of a successful gate.

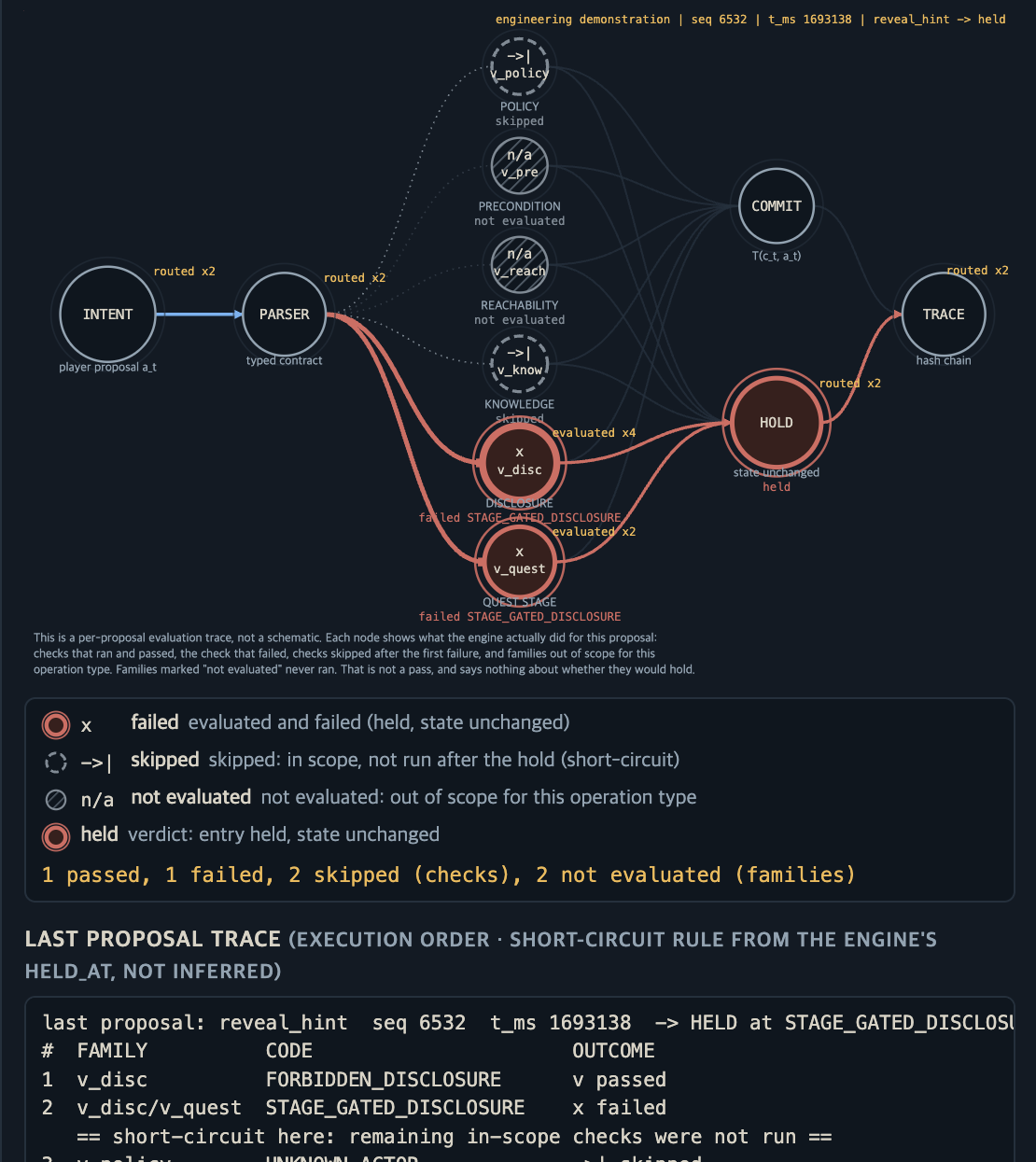

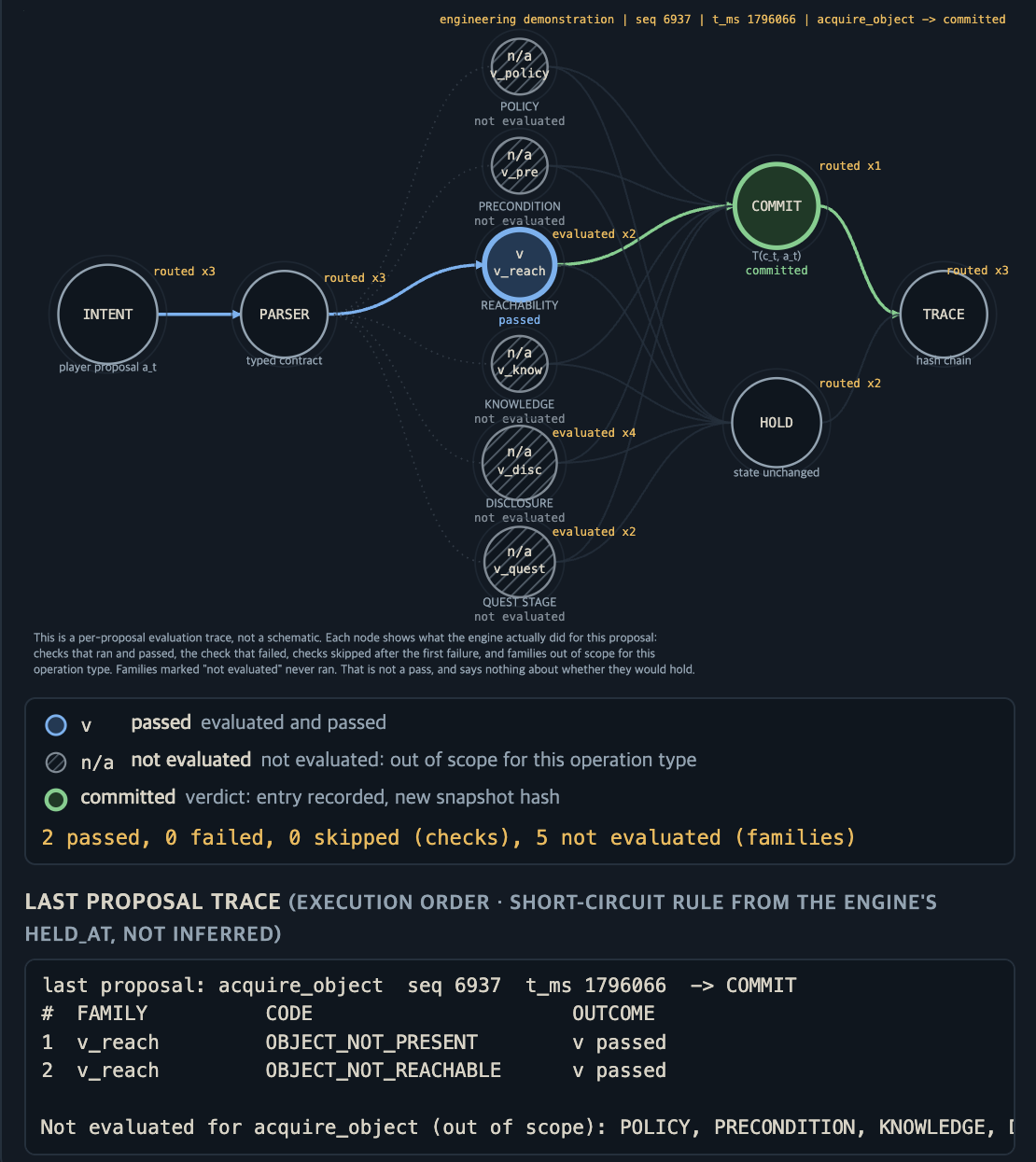

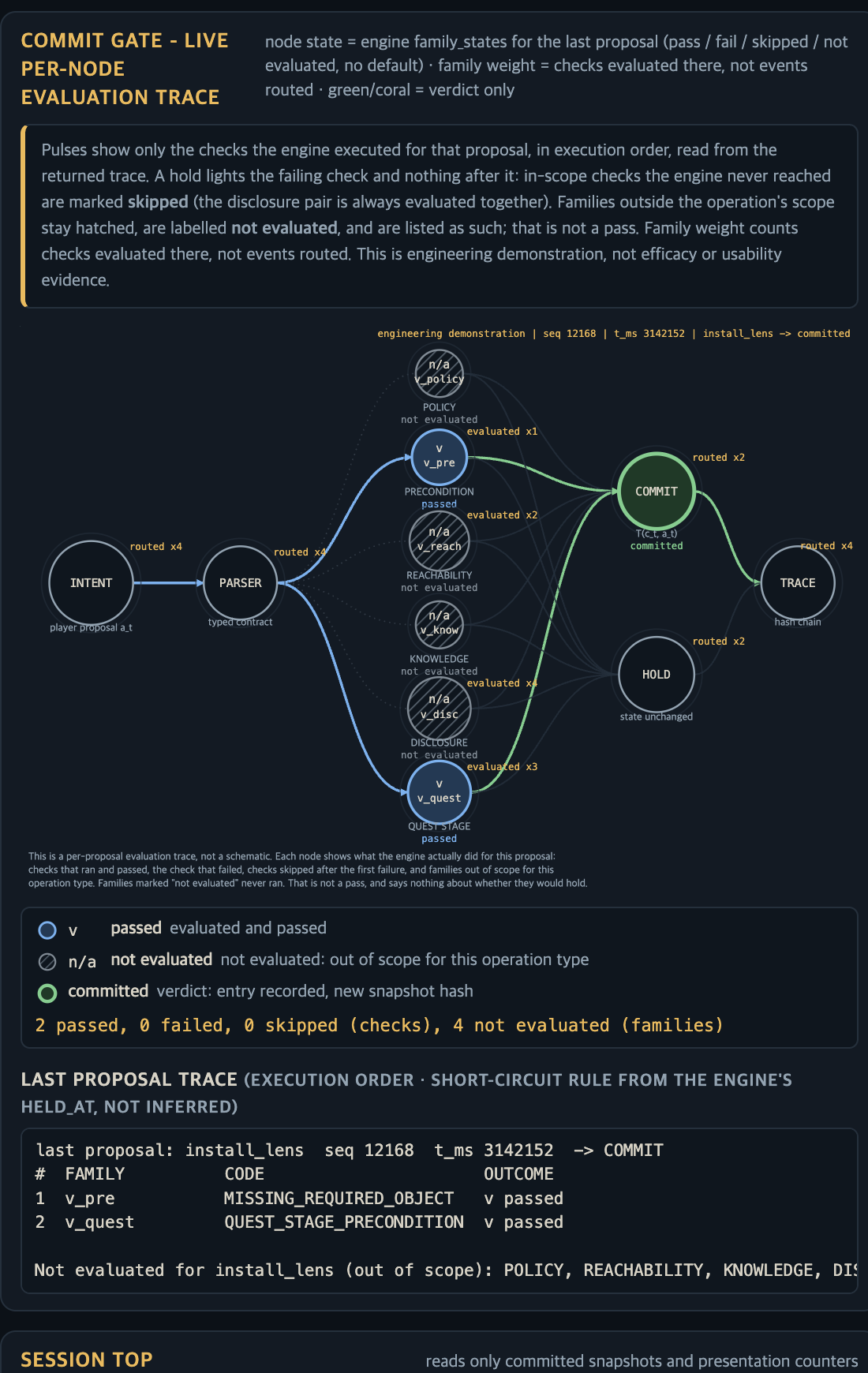

The screenshots above are historical captures of four specific dashboard states. Their original capture times are shown separately from their retrieval into this draft package. They do not claim that the later, stage-0 live-dashboard check produced those traces.
💡 Innovation: keep instrumentation an observer, not a second policy engine
The reusable engineering rule is simple: a reconstructed trace may explain a decision, but the canonical writer must remain the source of truth. Bind the mirror to an exact machine version, derive it from the same PRE-state, compare its failure set with the writer’s output, and make disagreement visibly non-evidentiary.
That still leaves a worthwhile verification step. A small engine-driven differential suite could run accepted and refused cases through both the machine and the mirror, including combined disclosure failures and each short-circuit boundary. The existing source-text test is a guard against one class of drift; adding execution would answer a different question. Until then, describe the dashboard as a consistency-checked reconstruction, not a complete runtime event log.
This post is intentionally narrower than my D-074 release audit. That article asks what a large set of conformance receipts can say about player benefit. Here, the unit of analysis is one proposal’s trace provenance. For a parallel example of checking an explicit contract against the exact data surface, see the Orca telemetry audit.
🎯 Key Takeaways
- D-073 reconstructs proposal checks against committed PRE-state; the hash-bound machine remains the canonical writer.
- A consistent trace reports
pass,fail,skipped, andout_of_scopeas different states. - Mirror agreement is equality of sorted unique failure-code sets, not a runtime proof of order or multiplicity.
- The current drift test checks bytes, source-text order, evidence binding, and controller wiring; it does not execute Godot.
- A mismatch yields missing trace state, not a green family result.
- None of these implementation receipts measures player comprehension, usability, or efficacy.
🤔 New Questions
Which runtime-level test would add the most confidence per unit of work: replaying a small set of canonical proposal snapshots, property-testing every mirror branch against the machine, or capturing both results in an engine-level test harness? The next experiment should choose one and name its coverage, rather than letting another static check stand in for execution.
References
Primary project evidence
- D-073 commit
- EvaluationTrace mirror at D-073
- Hash-bound machine at D-073
- D-073 trace-mirror drift test
- Retained Godot evidence manifest
- Sealed Lighthouse dashboard
